Industrial Design for Safety Laser Scanners – Leuze RSL 200

The design task was to integrate a highly complex safety system into an exceptionally compact housing – without compromising scan field visibility, usability, robustness or service access.

Cooling, connection technology and mounting options had to be integrated in a way that ensures reliable performance both in confined installation spaces and in demanding industrial environments. At the same time, the product needed to clearly reflect the established corporate identity of Leuze safety products while allowing for cost-efficient and production-ready implementation.

This project builds on a broader product strategy that we previously developed within the Leuze Product Identity framework, demonstrating how corporate industrial design extends beyond individual products to create a coherent product ecosystem.

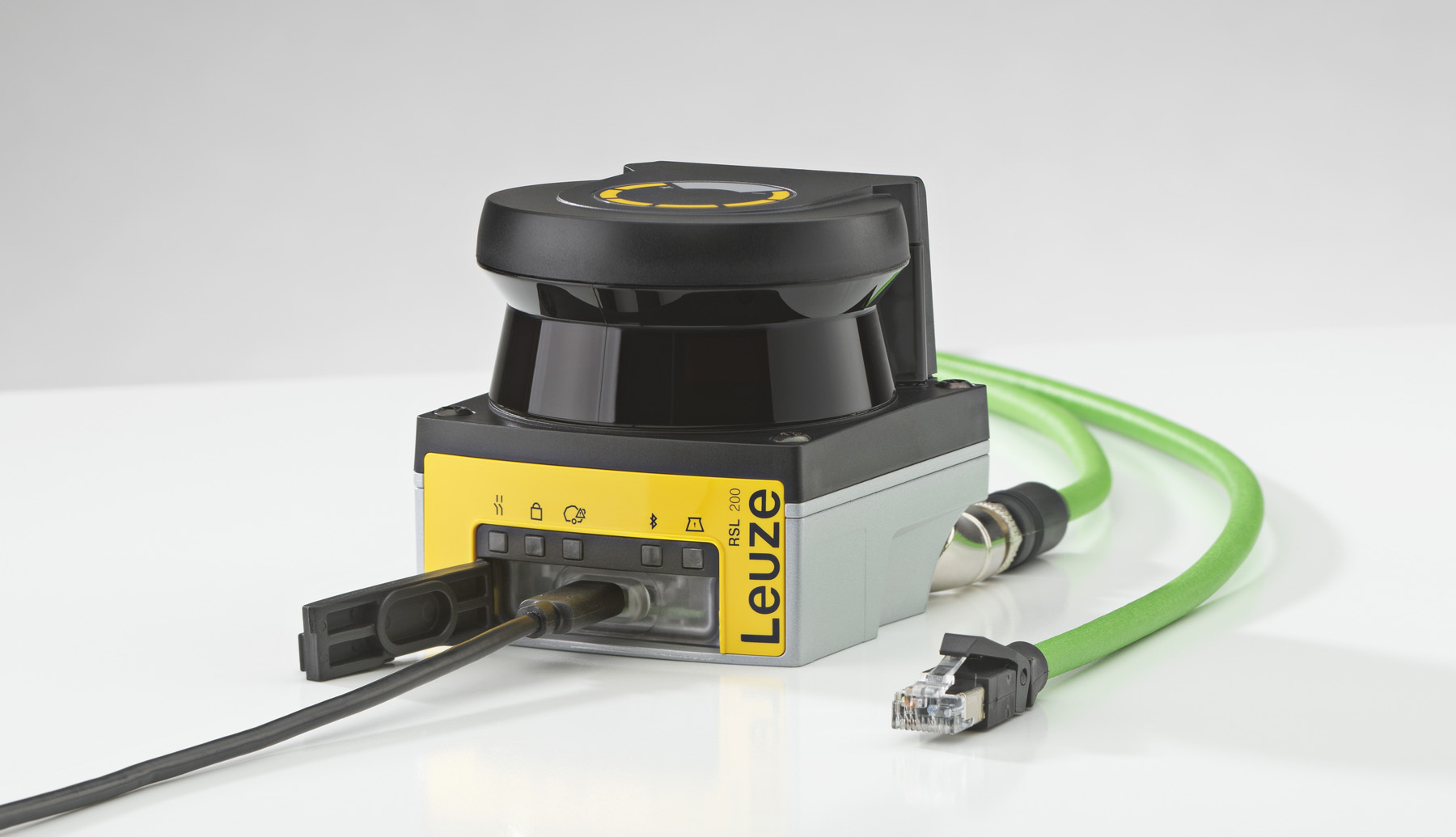

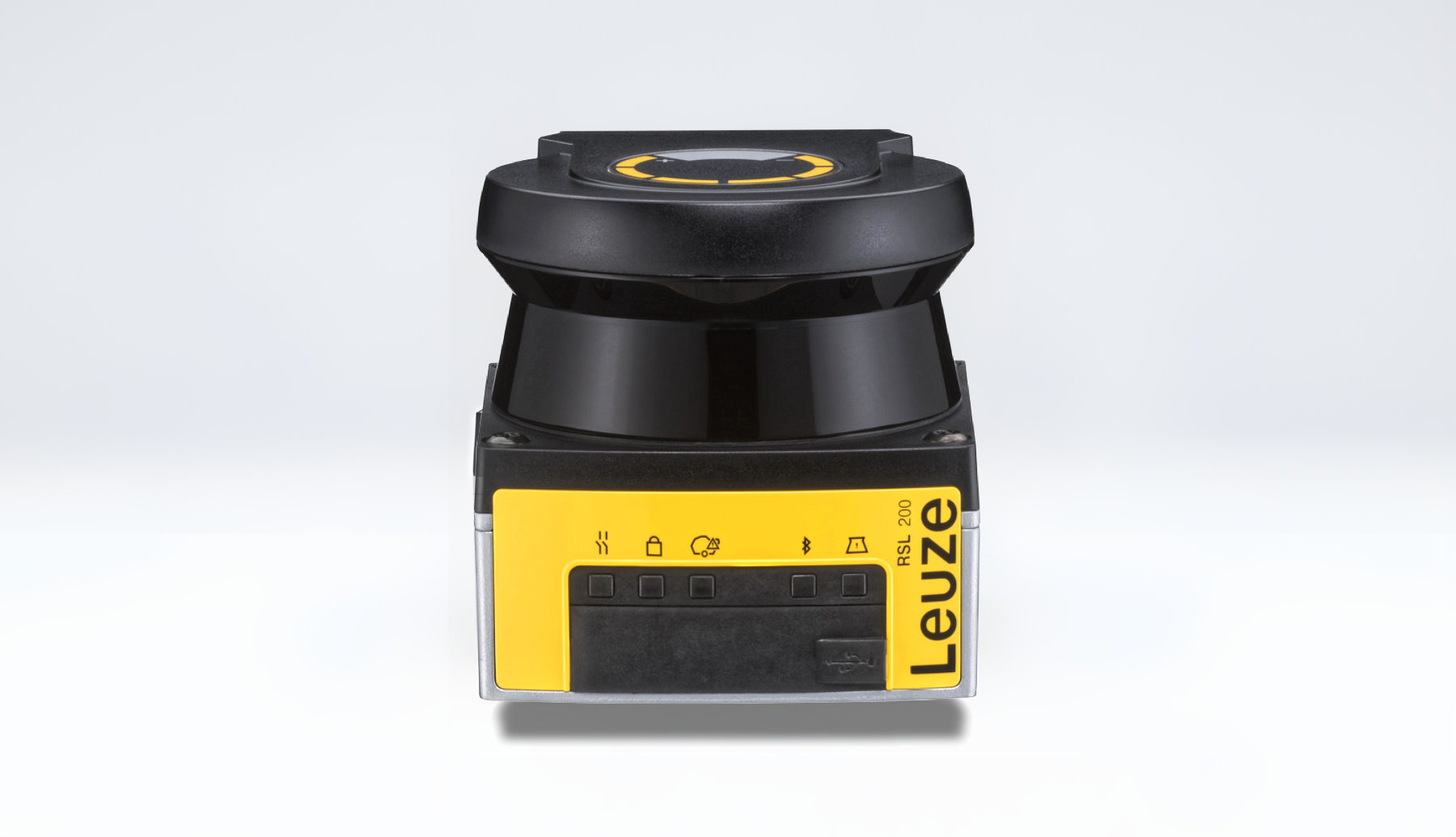

The RSL 200 combines maximum compactness with functional clarity and a clear connection to the existing product family. The color and form language in black, silver and Leuze yellow ensure quick identification within safety environments and strong brand recognition.

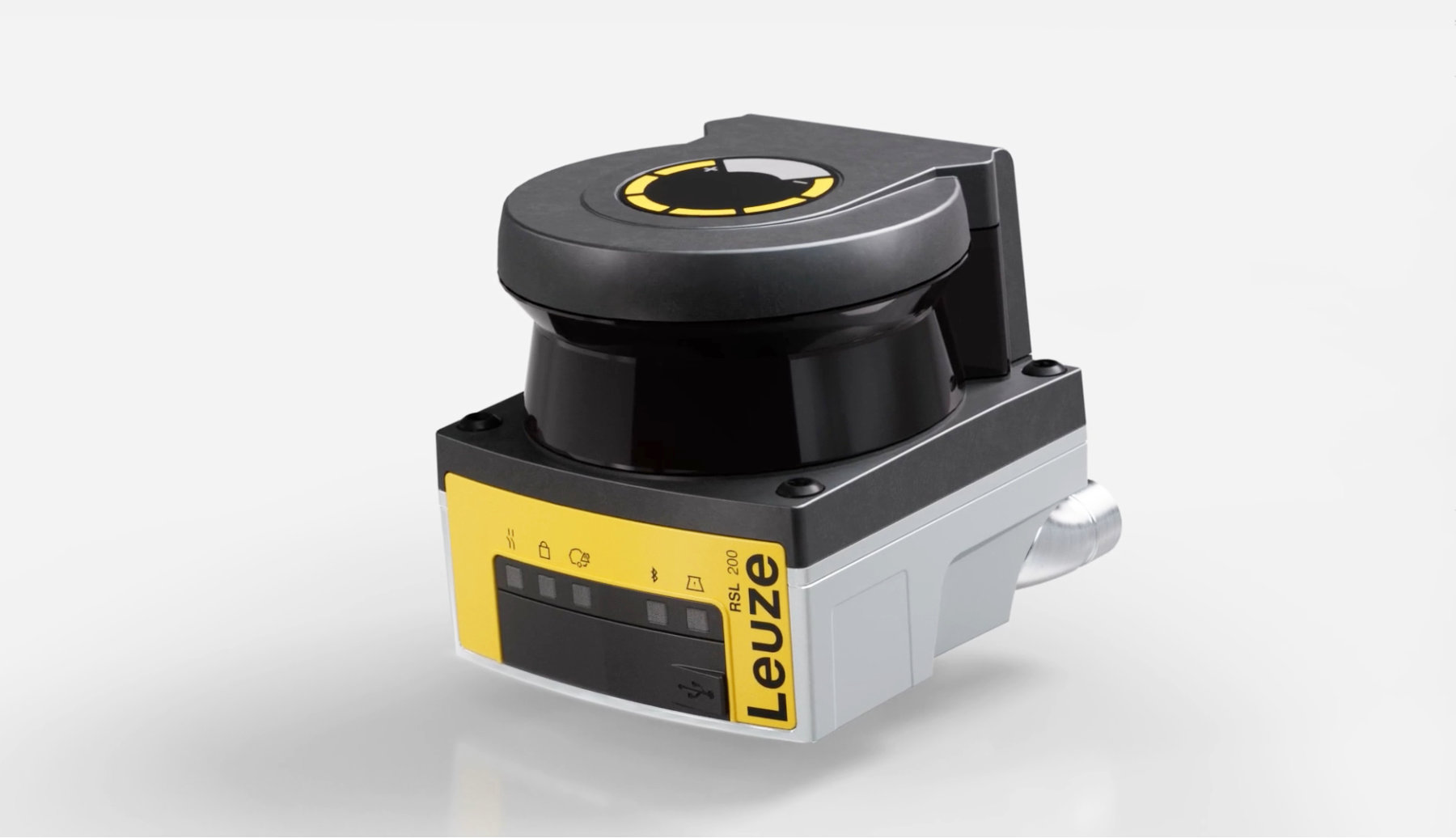

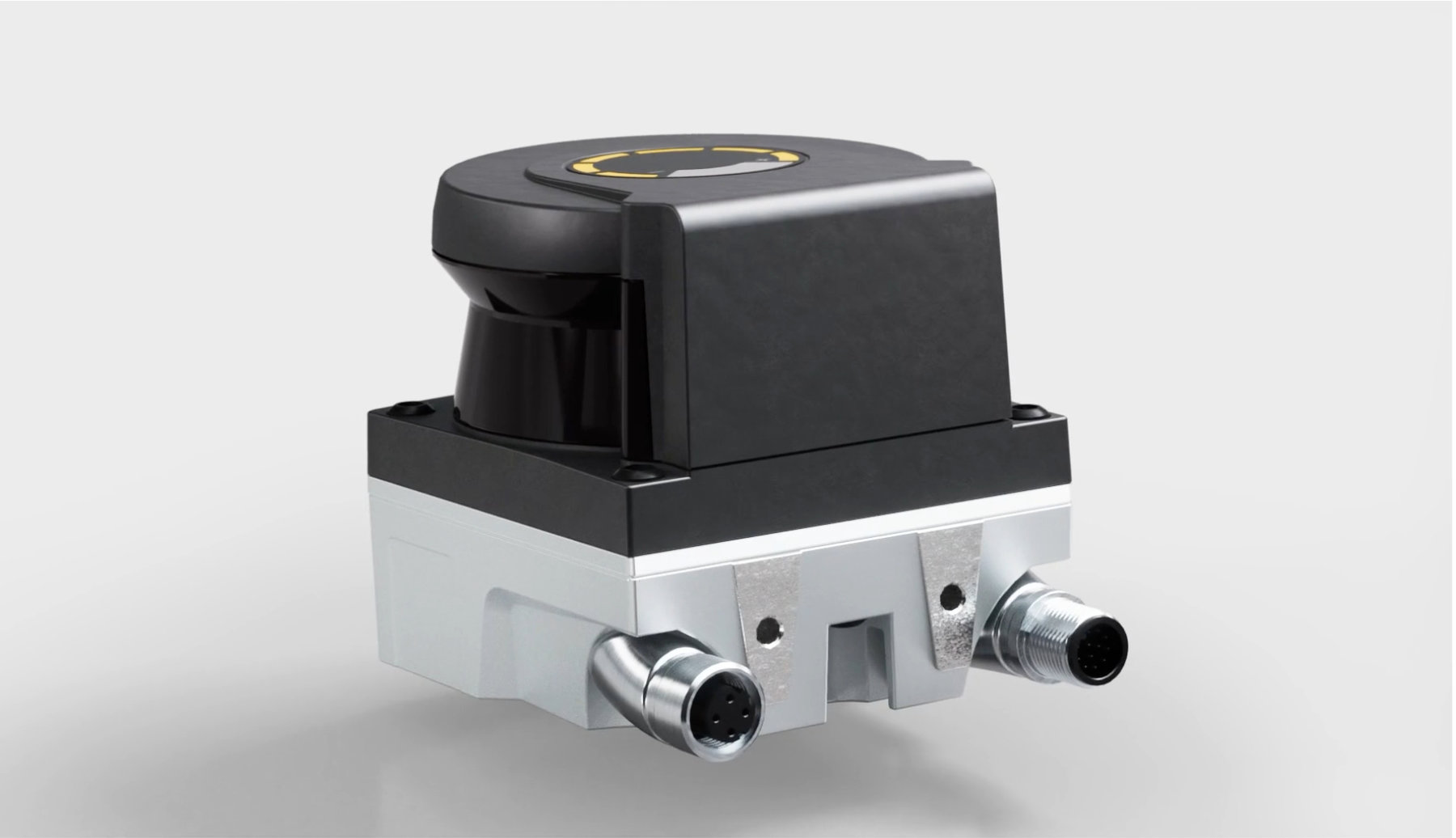

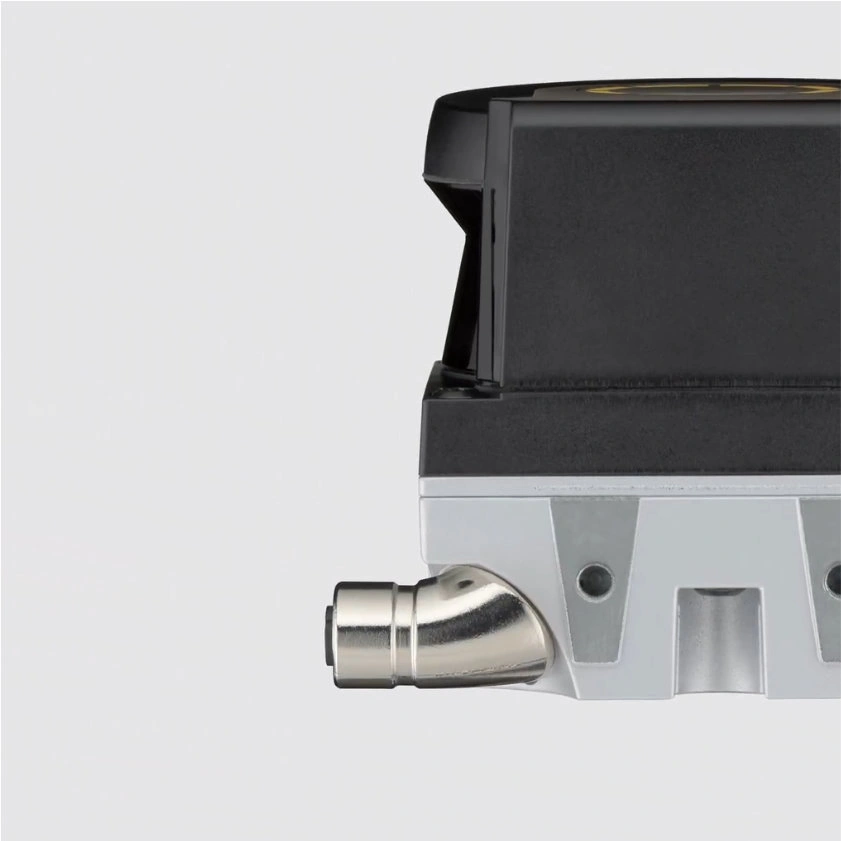

The circular top element with its glass front visually communicates the 275° scanning angle and supports intuitive orientation during installation. At the same time, the variable connection layout with rotatable ports increases integration flexibility – even in complex machine configurations or changing mounting directions.

The resulting housing concept expresses precision, simplifies installation and performs reliably in everyday use without requiring additional explanation. This project illustrates how corporate industrial design translates technical function, brand identity and system logic into a coherent and market-relevant product solution.

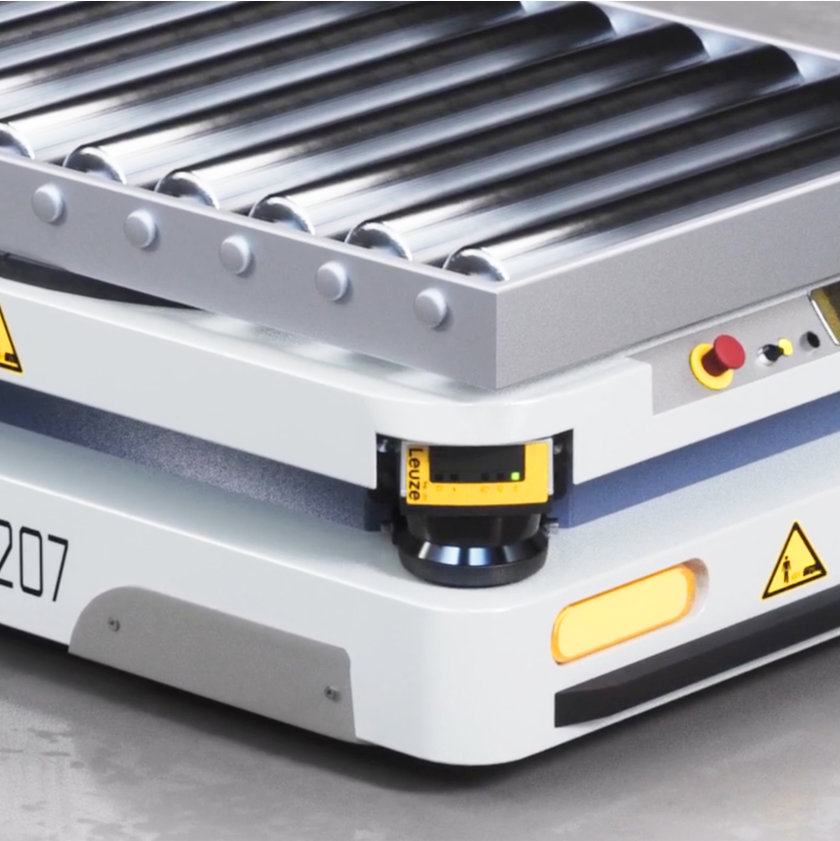

With the RSL 200, a safety product was created that combines technological precision and functional industrial design in an exceptionally compact format. The robust housing architecture integrates cooling, connection interfaces and mounting options in a way that ensures consistent and reliable performance across diverse industrial applications.

The characteristic Leuze yellow reinforces visibility within safety-critical environments, while the material-specific implementation enables precise and cost-efficient manufacturing.

The RSL 200 exemplifies how we at Eckstein Design in Munich translate complex technical requirements into clear, brand-consistent industrial products. Our industrial design approach combines engineering logic, usability, brand strategy and manufacturing feasibility to create solutions that differentiate in the market and deliver measurable business value.
